Product Description

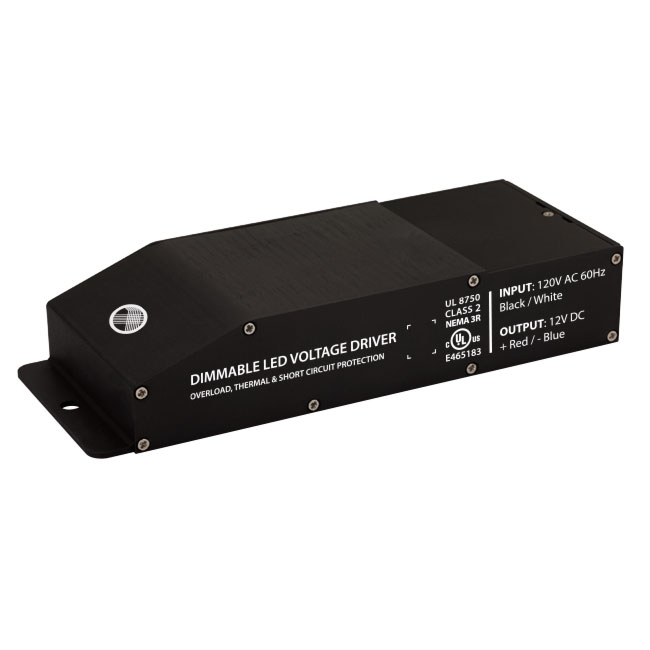

Magnitude’s E60L12DC-KO dimmable voltage LED driver is UL Listed class 2 rated and designed to operate with any standard MLV/Incandescent TRIAC (Leading edge) dimmer switch. Encased in a low profile aluminum enclosure that includes 2 knock-outs to enable easy installation makes it the perfect choice for under cabinet lights, tape lights and various LED fixtures installations.
Our electrical specification includes Auto Reset, over current and short circuit protection. Efficiency of 90% and higher allows the driver to operate at low temperatures.

We’ve partnered with the manufacturer of these awesome drivers to bring you the lowest, near wholesale, price possible. Please note that they ship directly from the manufacturer and due to their popularity & demand, the manufacturer generally ships 2-5 days after you place your order.  They are definitely worth the extra few days! We will email you shipping status and send tracking once we have it.

INTERNATIONAL BUYERS: Please note there is an extra charge to ship Magnitude items outside of the USA. You will receive a shipping quote/invoice via email after purchase.
[two_fourth class=”” last=”no”]

Driver Specifications

Attribute Spec
Max Load 60 Watt
Input Voltage 120V AC
Input Current Full Load 0.61 Amps
Output Current Full Load 5 Amps
Efficiency > 90%
Short Circuit Protection Yes
Dimensions 6.77 x 2.67 x 1.26 in
Weight 17 oz

[/two_fourth][two_fourth class=”” last=”yes”]

Features

  • Dimmable with any standard MLV/Incandescent TRIAC (Leading edge) dimmer switch
  • Super compact ALUMINUM CASE.
  • Class 2
  • UL 8750
  • Nema 3R – Outdoor use
  • Auto-Reset Protection for short circuits & over-voltage.
  • FCC 15 part 2
  • 12V DC True RMS

Downloads

E60L12DC-KO Spec Sheet

E60L12DC-KO Guide

List of Compatible Dimmers
